LumiMorph

Grande

Living Walls, Immersive Stories.

For expansive walls and immersive installations, Grande delivers strong visual impact at scale with optimal cost-efficiency.

4,500nits
Max Brightness
P6.2mm
Pixel Pitch
25,600/m²
Pixels
60Wavg
Power/Panel

Scale & Impact

Built for Immersive Installations

Grande is designed for large-format applications where visual impact matters most. The P6.2 pixel pitch provides excellent image quality from typical viewing distances of 5-30 meters, while the larger pixel pitch makes it significantly more cost-effective for expansive installations.

Optimal for 5-30m viewing distance
Cost-effective for large installations
Same texture covers as Elite
4,500 nits maximum brightness
Large Scale

Customization

200+ Texture Options

Same texture library as Elite. Effortlessly adaptable and infinitely customizable.

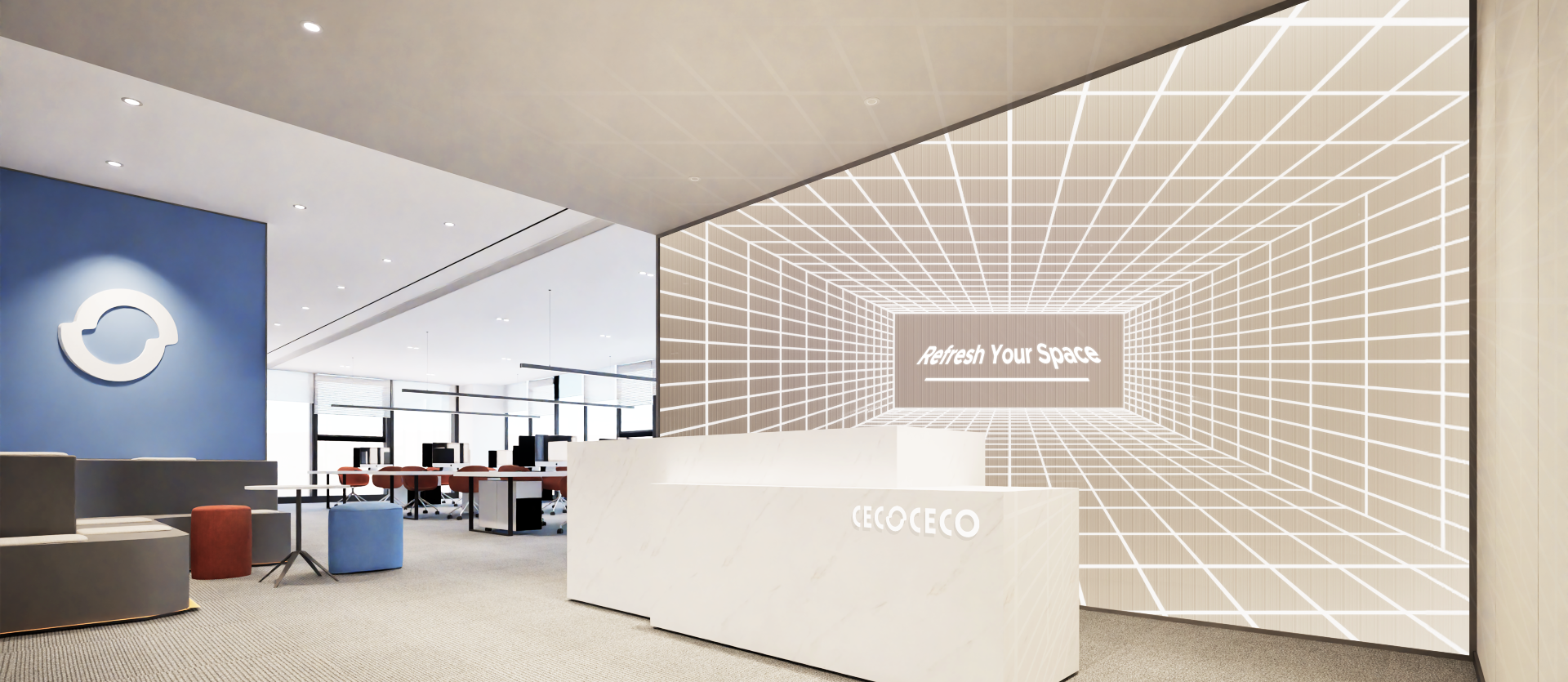

Wood

Wood

Timeless elegance and warmth of natural wood textures.

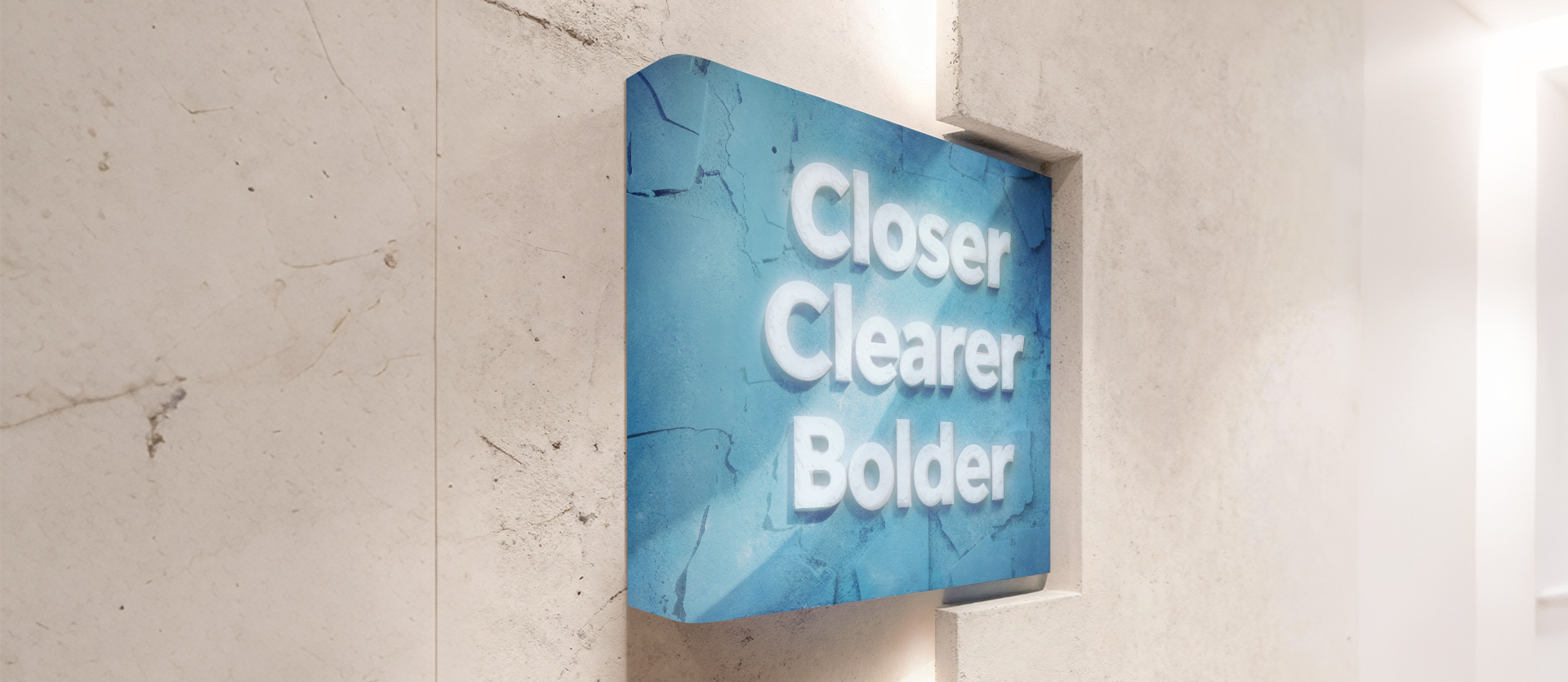

Stone

Stone

Enduring strength and beauty of refined stone surfaces.

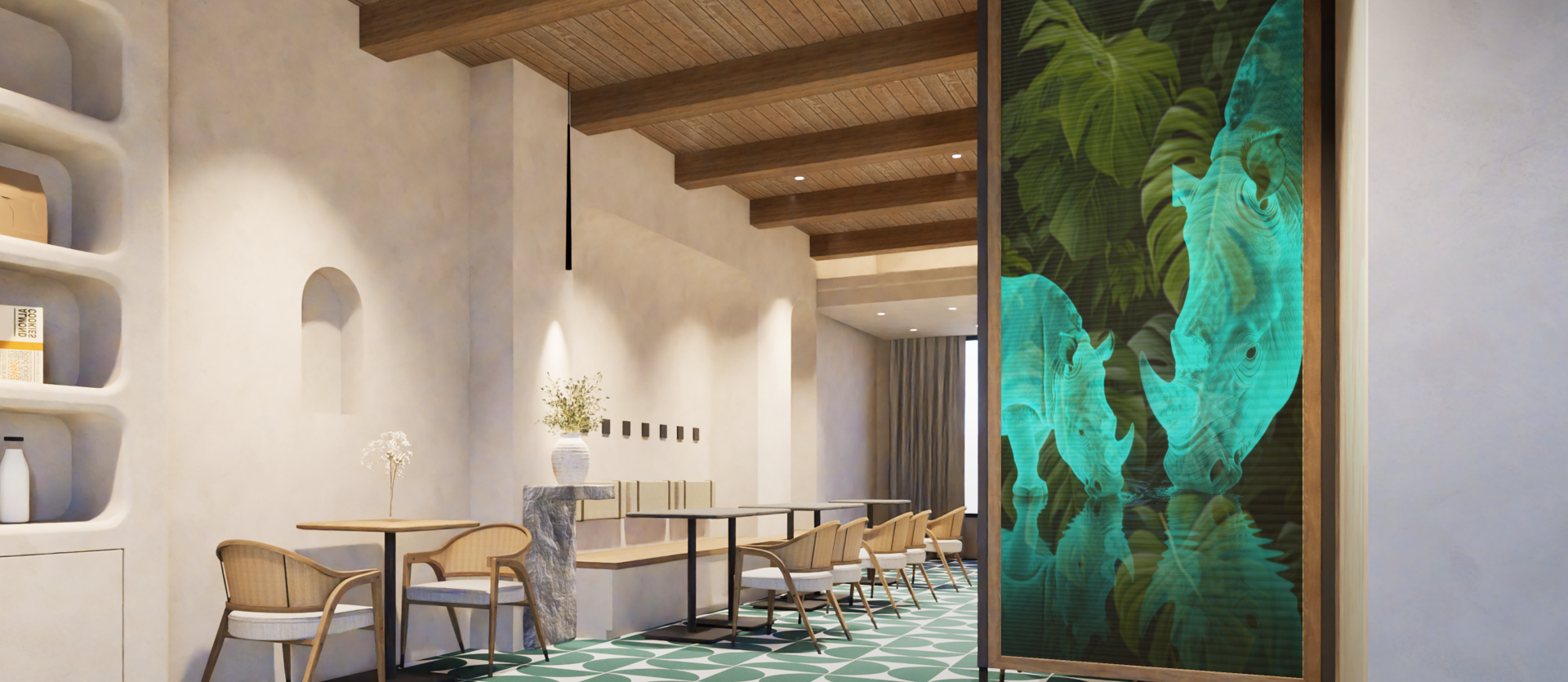

Textile

Textile

Soft sophistication and comfort of luxurious textile finishes.

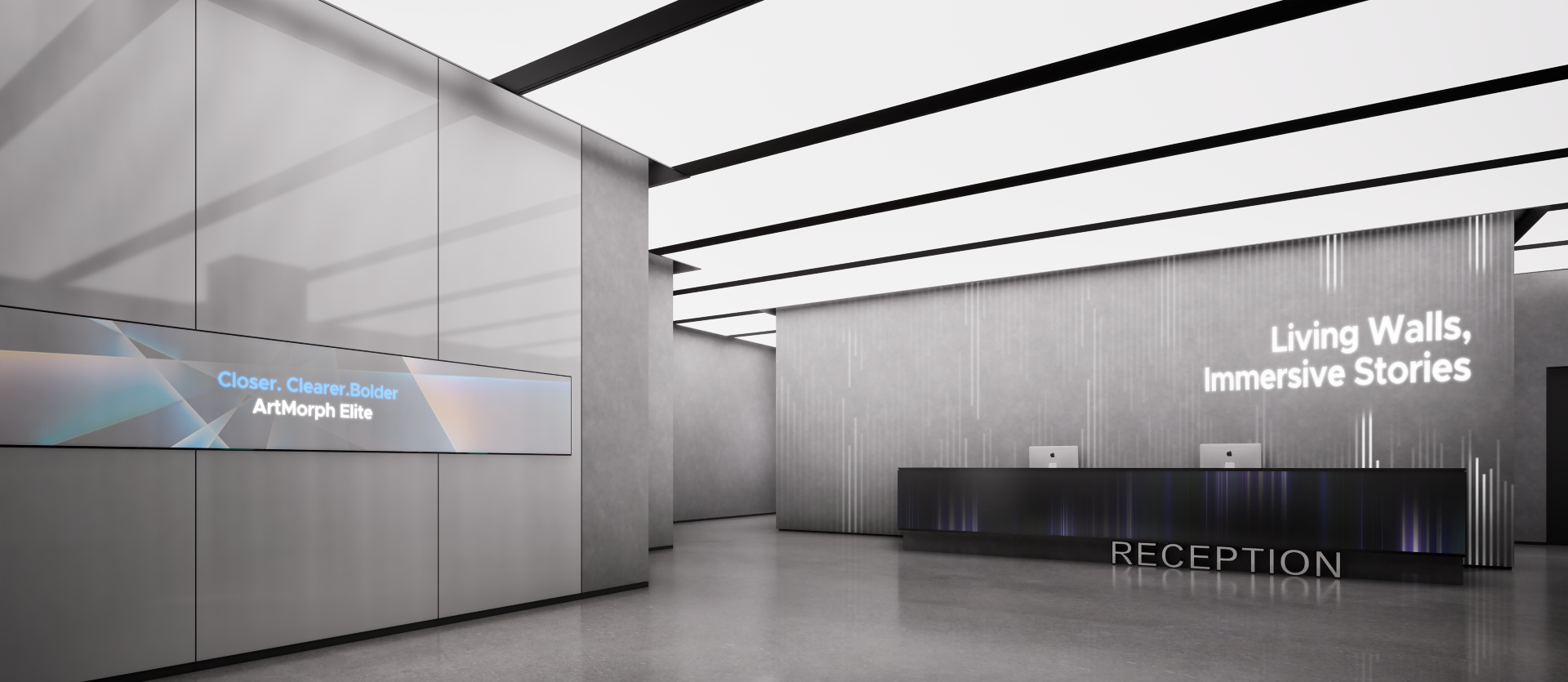

Metal

Metal

Sleek modernity and shine of contemporary metal designs.

Installation

Simple Setup

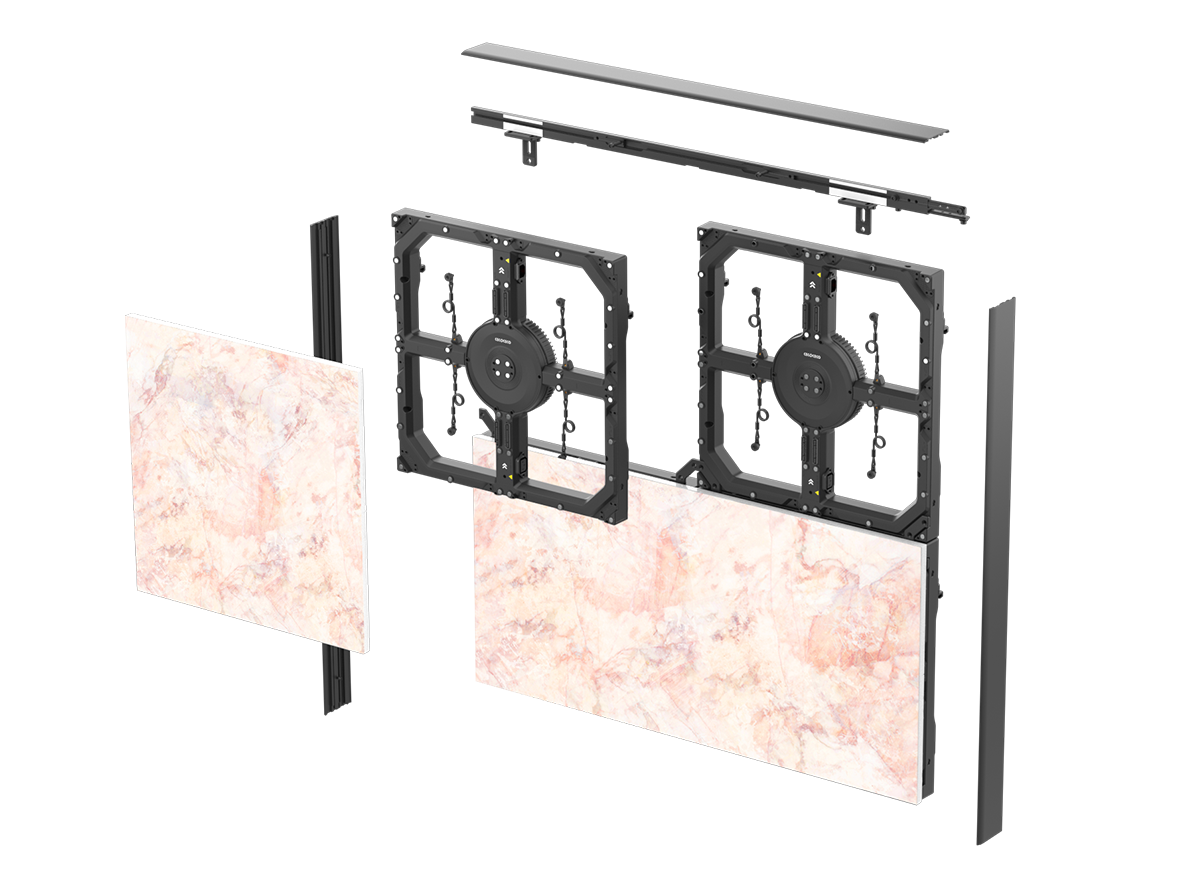

Effortless Modular Installation

The modular design allows quick and easy front-access maintenance. Individual modules can be replaced or serviced without disturbing the entire installation, reducing downtime and maintenance costs.

Modular Frame System

Mount the frame, attach panels with power magnets

Front-Access Service

Replace modules without taking down the display

Flexible Mounting

Wall mounting, hanging, or ceiling installation

Technical Data

Specifications

Display

ProductLumiMorph Grande
Pixel Pitch6.2 mm
Max Brightness4,500 nits (no surface)
With Surface800-1,200 nits
Pixels/Panel80 x 80
Pixels/m²25,600

Physical

Panel Size500 x 500 x 77.8 mm
Module Size250 x 250 x 24.8 mm
Weight/Panel7 kg
Power (Max/Avg)120W / 60W
IP RatingIndoor
Operating Temp-20°C to 45°C
Certifications:CEFCCETLCCCRoHSWEEECBUKCA

Support

Frequently Asked Questions

Get Started

Ready to Transform Your Space?

Request a demo to experience LumiMorph Grande. Perfect for large-scale immersive installations.
