NaturaTex Series
HoloVeil
High Visual Transparency. Invisible Experience.
Holographic transparent LED screens that transform glass facades into floating media displays while maintaining crystal-clear views. See through. Stand out.
Holographic Technology
Images Float in Mid-Air
HoloVeil creates a unique visual experience where content appears to float in space, suspended between you and what's behind the glass. This naked-eye AR effect delivers powerful visual impact without requiring special glasses or equipment.
See-Through Design
Maintain full visibility of products, spaces, and views behind the display.
3D Holographic Effect
Content appears to float, creating dramatic visual experiences.
No Structural Changes
Installs directly on existing glass with minimal modification.
Key Benefits
Why HoloVeil
92-95% Transparency
Maintain clear views through glass while displaying vivid content.
Ultra-Light 6kg/m²
Minimal structural load for easy glass facade integration.
Up to 5,000 nits
High brightness for visibility even in direct sunlight.
Naked-Eye AR
Create 3D floating holographic visuals without special glasses.
Application Scenarios
Transform Any Glass Surface

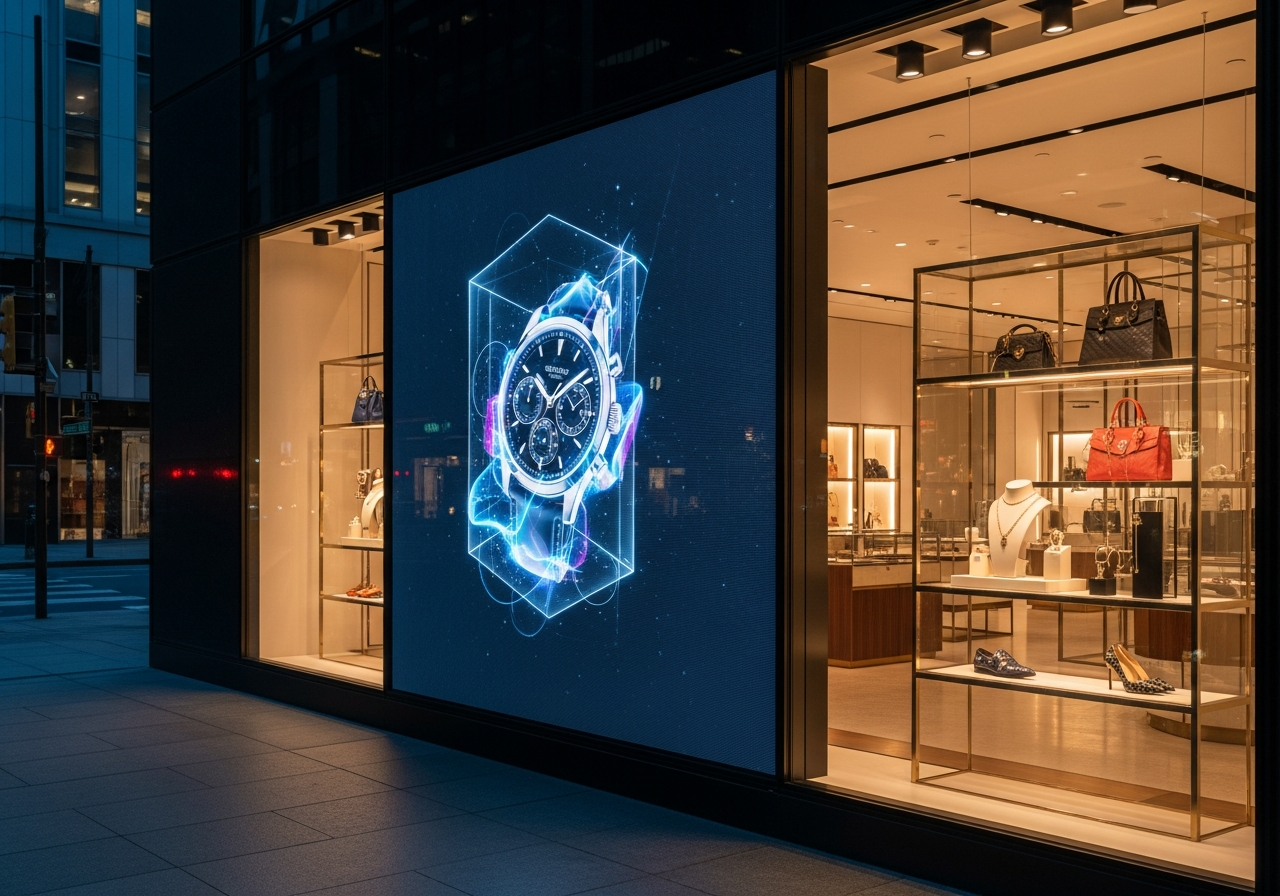

Retail Storefronts
Transform glass windows into media screens while maintaining product visibility.

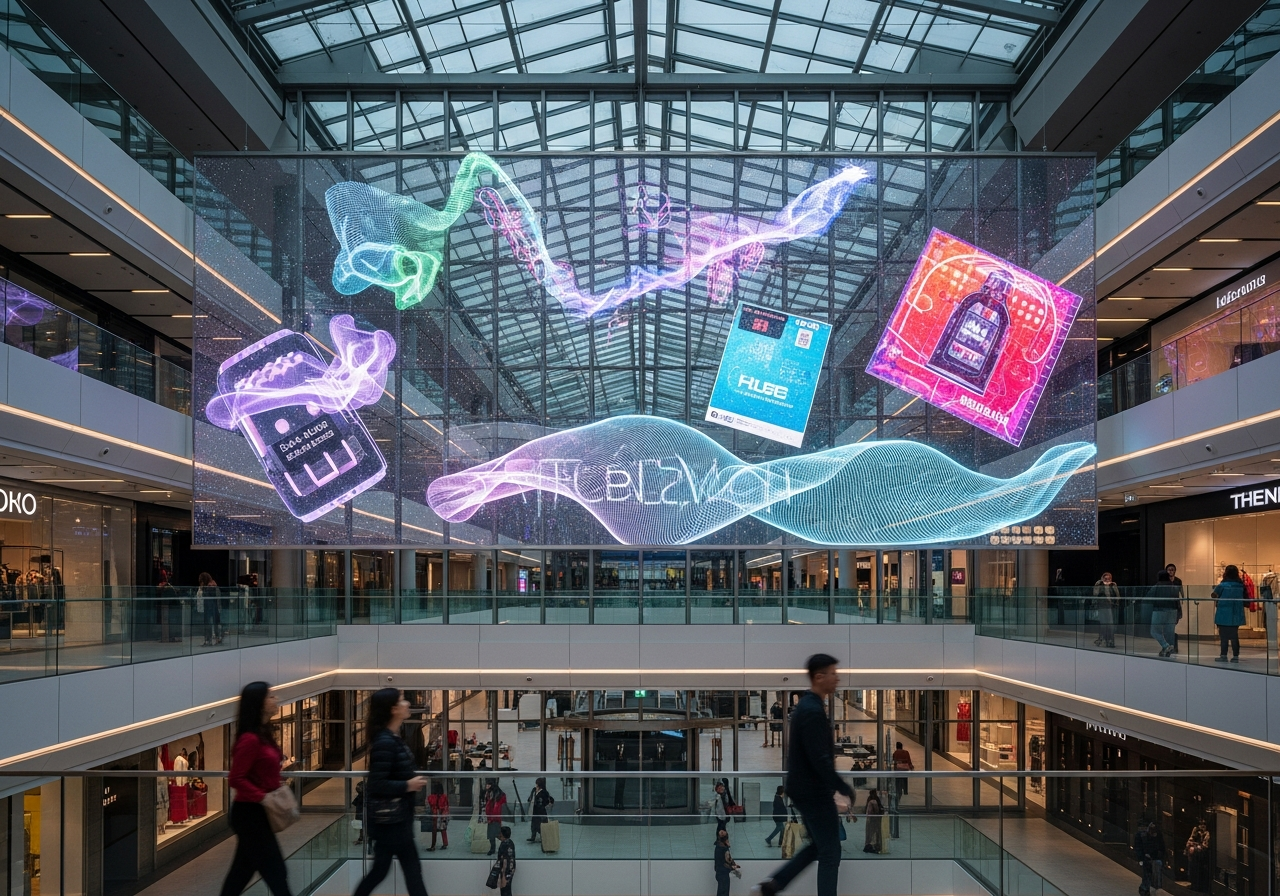

Shopping Malls
Create stunning atrium displays and glass curtain walls with floating imagery.
Exhibition Halls
Naked-eye AR experiences with 3D floating visuals in exhibition spaces.

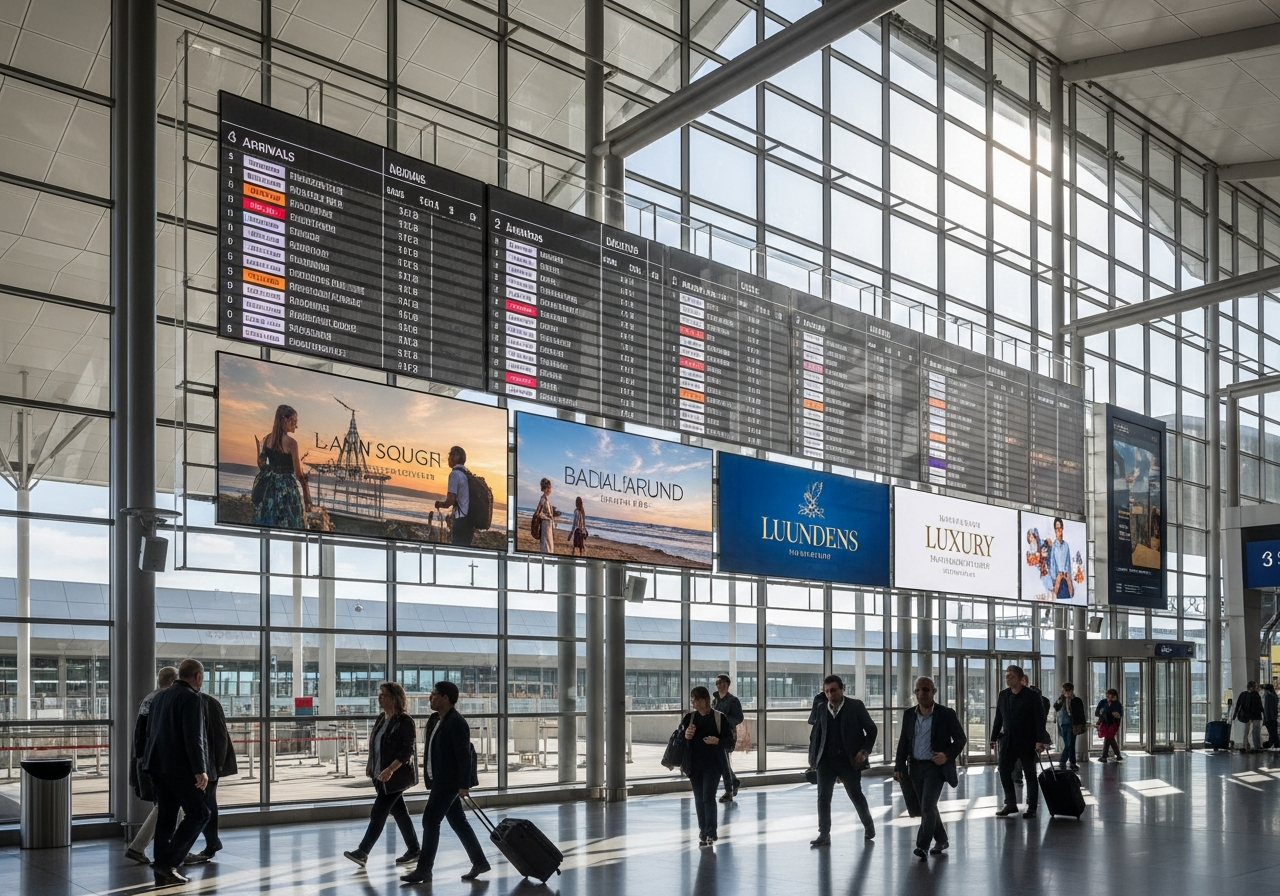

Transportation Hubs
High-impact advertising on glass facades of airports and transit stations.
Technical Data
Specifications
| Specification | HoloVeil SV3.9 | HoloVeil SV6.25 |
|---|---|---|
| Pixel Pitch (mm) | 3.9 x 3.9 | 6.25 x 6.25 |
| Transparency Rate | 92% | 95% |
| Pixel Density (dot/m²) | 65,536 | 25,600 |
| Brightness (Black LED) | ≥2,500 cd/m² | ≥2,000 cd/m² |
| Brightness (White LED) | ≥4,500 cd/m² | ≥5,000 cd/m² |
| Weight | 6 kg/m² | 6 kg/m² |
| Module Height Options | 1000/1172/1469 mm | 1000/1175/1475 mm |
| Power (Max/Avg) | 865W / 350W per m² | 865W / 350W per m² |
| Frame Rate | 60-120 Hz | 60-120 Hz |
| Working Temperature | -20°C to 50°C | -20°C to 50°C |
| Protection Rating | IP20 (Indoor) | IP20 (Indoor) |
Installation: LED Side Glued, PCB Side Glued, or Hanging. Static driving (single pixel single control).
Support
Frequently Asked Questions
Get Started
Ready to Transform Your Glass?
Request a demo to experience HoloVeil transparent screens. Perfect for retail storefronts, malls, and exhibition halls.
